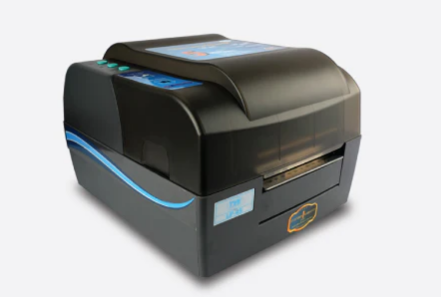

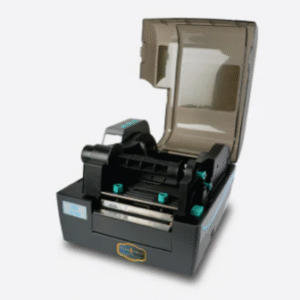

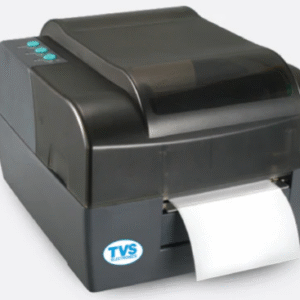

TVS LP 45 Thermal Label Printer

Printing Method

Thermal/Thermal transfer

Max. Print width

104 mm

Max. Print speed

125 mm/s

CPU

32 bit RISC micro-processor

Memory

8 MB FLASH RAM I 64 MB SDRAM

THP temperature detection

Thermistor

THP position detection

Micro-switch

Paper mark detection

Optical sensor

Ribbon detection

Optical sensor

Interface

Standard configuration: RS-232 Serial, CENTRONICS Parallel, USB

Driver

Windows driver (98/2000/XP/Win 7/Win 8 [32-bit, 64-bit])

Barcode

1D barcode Code 3 of 9, UPCA, UPCE, Interleaved 2 of 5, code 128, EAN13, EAN8, HBIC (39 code with checkout)

Fonts

Coda bar, industry CODE 25, Checksum & shipping bearer bars

Graphics

UPC2, UPC5, Code 93, POSTNET 25 (China), UCC/EAN, Matrix 25, POSTNET code, etc.

2D barcode

PDF417, MAXICODE, OR code etc.

Common single-byte font

FONTO to FONTS, 6 kinds of ASD smooth font, 8 kinds of Courier font

Self-defined font

Users can define the font and download to FLASH or SDRAM

Rotation print

(0°, 90°, 180°, 270°)

Graphics

Binary plain graphics, HEX, PCX, BMP and IMG graphics can be downloaded to FLASH/RAM

Paper type

Continuous paper, label paper, marked paper, perforated paper

Paper rolls 0/D (Max)

127 mm, ID 25mm, width (Max): 118 mm

Ribbon length (Max)

300 m, OD 25 mm

Input

AC 110-240 V, 50/60 Hz

Output

DC 24 V, 1.5A & DC 24 V, 2.5 A

Operation environment

+5-45°, 20%-90% (40°C)

Storage environment

-40-60°, 20%-93% (40°C)

Overall size

300 mm (L) x252 mm (W) x190 mm (H)

Weight

About 3.5 Kg

a. TPH: 30 Km or 12 Months from delivery) which comes first

b. Platen: 50 Km (Service part)
