Sale! 30% OFF!

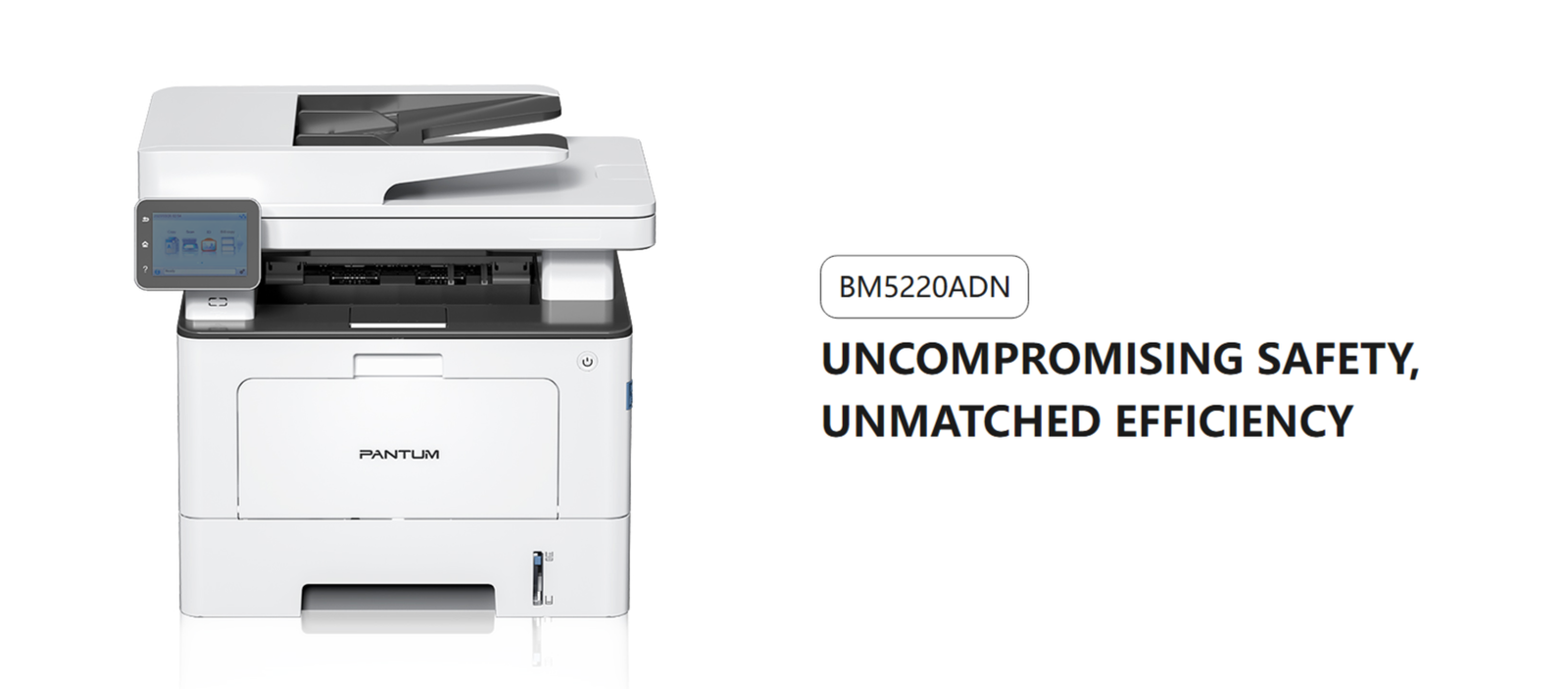

Pantum BM5220ADN Mono laser multifunction printer

Brand:
Add to Wishlist
Compare
15 people are viewing this product right now

Shipping calculated at checkout.
Tags: , , Categories:

Have any Questions?

Feel free to Get in touch

  • Brand: Pantum

    Model no.: BM5220ADN

    Printer Type : Laser Printer

    Product: New

    Cartridge Colors: Black

    Warranty : 1 Year or As Per Pantum Service Center

  • Print speed: 42 ppm

  • Connection method: USB+NET

  • Time to first page out: less than 5.9 sec

  • Number of printed pages per month: 100,000

  • Scan type: flatbed and DADF

  • Scan resolution: max. 2400x2400dpi

  • Interface: High-speed USB 2.0; IEEE 802.3 10/100/1000Base-Tx ；USB interface: front USB HOST (1), rear USB DEV (1)

  • Touch screen: yes

  • Consumables: TL-*5220; TL-*5220H; TL-*5220X; DL-*5220

Technical Details

Product Specifications

Product
Product BM5220ADN
General
Control panel 3.5 inch touch screen
Processor speed 1.2G Hz
Memory 1GB
Hard disc NO
Recommended Monthly Duty Cycle 750 to 4,000 pages
Maximum Monthly Duty Cycle 100,000 pages
Interface High-speed USB 2.0;
IEEE 802.3 10/100/1000Base-Tx ；
USB interface: front USB HOST (1), rear USB DEV (1)
Input voltage 110V： AC110-127V, 50/60Hz, 12A
220V： AC220-240V, 50/60Hz，6.5A
Power consumption print average：≤650W ；
ready：≤8W；
sleep：≤1.4W
shutdown ≤0.5W
Energy Star standards Energy Star 3.2
Noise Ready：≤30dB(A)；
Print：≤56dB(A);
Scan:≤56dB(A) ；
Copy:≤57dB(A) ；
Mute printing:≤50dB(A)
Operating Environment Recommended temperature:10～32℃；
basic used temperature：5～35℃；
Humidity range：20% ～ 80%
Altitude：≤3000m
Print
Print Speed 42ppm (A4 single-sided)
44ppm (Letter single-sided)
70ppm (A5 long edge single-sided)
A5 short edge: 9ppm
Duplex print speed 20spm（A4）
First print out time ≤5.9s
Print Languages PCL5e、PCL6、PS、GDI
Duplex printing Auto
U-disk print YES
Mobile print AirPrint，Mopria™ Print Service，Mopria Scan、APP print(iOS App/Android App)
NFC NO
Operating system compatibility Microsoft Windows：
Server2008/Server2012/Server2016/2019/2022/XP/Win7/Win8/Win8.1/Win10/win11（32/64 bit）Mac OS：10.10~14.3

Linux Ubuntu 16.04/18.04/20.04/22.04/24.04/
Debian 10.0/Centos 7（32/64 bit,intel Processor）；
Astra Linux Special Edition V1.6/Redhat 8.2.0/ Centos 8.2(64 bit,intel Processor)

Android：8.0 and later
iOSAPP：iOS 13 and later
HarmonyAPP：support HarmonyOS 2-4、HarmonyOS NEXT
Other printing functions Booklet printing,usb printing, mute printing, envelope printing without wrinkles,confidential printing, PDF printing
Copy
Copy Speed FB single-sided A4: 42cpm
FB single-sided Letter: 44cpm
ADF single-sided A4: 40cpm;
ADF double-sided A4: 20 pages/min
Duplex Copy Speed ADF duplex A4: 20 pages/min
First copy out time FB：less than 10s ； ADF：less than 11s; ADF duplex ≤20s
Copy Mode Normal mode: Automatic (default), Text and Image, Text, Image
Special mode: Receipt copy, ID card copy (automatic correction), All-in-one copy, Clone copy, Poster copy, Copy by copy, Binding margin
Copy Resolution FB: Maximum 600×600dpi
ADF: Maximum 600×600dpi
Zoom 25%~400%
Maximum copy pages 99 pages
Additional function Copy settings: original size, copy to, duplex copy, image quality, brightness, zoom, collate, multiple pages in one, clone, poster, flip mode
Scan
Scanner Tech CIS
Scanner type FB+DADF
Scanner mode Color，Gray，Black & White
ADF duplex scanning speed 300 gray duplex scanning mode A4: 24ppm (48ipm)
300 color duplex scanning mode A4: 8ppm (16ipm)
300 gray duplex scanning mode Letter: 50 ipm
ADF single-sided scanning speed 300 gray single-sided scanning mode A4: 40ppm
300 color single-sided scanning mode A4: 13ppm
300 gray single-sided scanning mode Letter: 42 ppm
ADF input capacity 50 pages（80g/m2)
Maximum scan dpi FB: pull scan 2400x2400dpi (displayed on the driver side as 2400dpi),
FB: push scan 1200 x 1200dpi (displayed on the driver side as 1200dpi)
ADF: pull scan/push scan: 600x600dpi (displayed on the driver side as 600dpi)
Maximum scan size FB：216×297mm
ADF: 216×356mm
Scan Destinations Scan to PC、Mail、FTP、SMB、U-disk
Scan format Push scan：PDF，TIFF，JPG，OFD
Pull scan：PDF、TIFF、JPG、BMP、PNG、OFD、DOCX、XLS、XLSX、PPTX、TXT、Searchable PDF
Pantum scan application software YES
Other scan function OCR
Paper handling
Paper input tray standard input tray：250 pages;
Multipurpose input tray：60 pages;
Optional tray：550 pages (Maximum:2);
Max input tray：1,410 pages
Paper output tray 150 pages
Paper output full detection YES
Accessory PT-511H (Optional tray 550 Pages -Maximum:2)
Media type 1. Automatic paper feeder: plain paper, thick paper, transparent film, thin paper, recycled paper
2. Multi-purpose paper feeder: plain paper, thick paper, card paper, label paper, envelope, thin paper, extra thick paper
3. Optional paper tray: plain paper, thick paper, thin paper
Media size A4, A5, JIS B5, IS0 B5, A6, Letter, Legal, Executive, Folio, Oficio,
Statement, Japanese Postcard, Monarch Env, DL Env, C5 Env, C6 Env, No.10 Env, ZL, Big 16K, Big 32K, 16K, 32K, B6, Yougata4, Postcard, Younaga3, Nagagata3, Yougata2
Minimum support ed size: 80mm x 148mm
Maximum support ed size: 216mm x 356mm
Media weight input tray：60-120g/㎡
Multipurpose tray：60-200g/㎡
Optional tray：60-120g/㎡
Consumable
Consumable Type Toner Cartridge & Drum Unit
Starter Cartridge TL-*5220 (3,000 pages）
Starter drum unit DL-*5220 （30,000 pages）
Standard Cartridge TL-*5220（3,000 pages）
TL-*5220H （6,000 pages）
TL-*5220X （15,000 pages)
Standard drum unit DL-*5220（30,000 pages）
Packaging
Printer Dimensions(D*W*H) 416*368*378mm
Package Dimensions(D*W*H) 559*444*488mm
Printer net weight（kg) 12.7kg (With consumable)
Printer gross weight (kg) 15.4kg
