Pantum BM5220ADW Mono laser multifunction printer

Product

BM5220ADW

Control panel

3.5 inch touch screen

Processor speed

1.2G Hz

Memory

1GB

Hard disc

NO

Recommended Monthly Duty Cycle

750 to 4,000 pages

Maximum Monthly Duty Cycle

100,000 pages

Interface

High-speed USB 2.0;

IEEE 802.3 10/100/1000Base-Tx;

WiFi (2.4G/5G): IEEE 802.11a/b/g/n+Bluetooth

USB interface: front USB HOST (1), rear USB DEV (1)

Bluetooth interface

Input voltage

110V： AC110-127V, 50/60Hz, 12A

220V： AC220-240V, 50/60Hz，6.5A

Power consumption

print average：≤650W ；

ready：≤8W；

sleep：≤1.4W

shutdown ≤0.5W

Energy Star standards

Energy Star 3.2

Noise

Ready：≤30dB(A)；

Print：≤56dB(A);

Scan:≤56dB(A) ；

Copy:≤57dB(A) ；

Mute printing:≤50dB(A)

Operating Environment

Recommended temperature:10～32℃；

basic used temperature：5～35℃；

Humidity range：20% ～ 80%

Altitude：≤3000m

Print Speed

42ppm (A4 single-sided)

44ppm (Letter single-sided)

70ppm (A5 long edge single-sided)

A5 short edge: 9ppm

Duplex print speed

20spm（A4）

First print out time

≤5.9s

Print Languages

PCL5e、PCL6、PS、GDI

Duplex printing

Auto

U-disk print

YES

Mobile print

AirPrint，Mopria™ Print Service，Mopria Scan、APP print(iOS App/Android App)

NFC

YES (except IOS)

Operating system compatibility

Microsoft Windows：

Server2008/Server2012/Server2016/2019/2022/XP/Win7/Win8/Win8.1/Win10/win11（32/64 bit）

Mac OS：10.10~14.3

Linux Ubuntu 16.04/18.04/20.04/22.04/24.04/

Debian 10.0/Centos 7（32/64 bit,intel Processor）；

Astra Linux Special Edition V1.6/Redhat 8.2.0/ Centos 8.2(64 bit,intel Processor)

Android：8.0 and later

iOSAPP：iOS 13 and later

HarmonyAPP：support HarmonyOS 2-4、HarmonyOS NEXT

Other printing functions

Booklet printing,usb printing, mute printing, envelope printing without wrinkles,confidential printing, PDF printing

Copy Speed

FB single-sided A4: 42cpm

FB single-sided Letter: 44cpm

ADF single-sided A4: 40cpm;

ADF double-sided A4: 20 pages/min

Duplex Copy Speed

ADF duplex A4: 20 pages/min

First copy out time

FB：less than 10s ； ADF：less than 11s; ADF duplex ≤20s

Copy Mode

Normal mode: Automatic (default), Text and Image, Text, Image

Special mode: Receipt copy, ID card copy (automatic correction), All-in-one copy, Clone copy, Poster copy, Copy by copy, Binding margin

Copy Resolution

FB: Maximum 600×600dpi

ADF: Maximum 600×600dpi

Zoom

25%~400%

Maximum copy pages

99 pages

Additional function

Copy settings: original size, copy to, double-sided copy, image quality, brightness, zoom, collate, multiple pages in one, clone, poster, flip mode

Scanner Tech

CIS

Scanner type

FB+DADF

Scanner mode

Color，Gray，Black & White

ADF duplex scanning speed

300 gray duplex scanning mode A4: 24ppm (48ipm)

300 color duplex scanning mode A4: 8ppm (16ipm)

300 gray duplex scanning mode Letter: 50 ipm

ADF single-sided scanning speed

300 gray single-sided scanning mode A4: 40ppm

300 color single-sided scanning mode A4: 13ppm

300 gray single-sided scanning mode Letter: 42 ppm

ADF input capacity

50 pages

Maximum scan dpi

FB: pull scan 2400x2400dpi (displayed on the driver side as 2400dpi),

FB: push scan 1200 x 1200dpi (displayed on the driver side as 1200dpi)

ADF: pull scan/push scan: 600x600dpi (displayed on the driver side as 600dpi)

Maximum scan size

FB：216×297mm

ADF: 216×356mm

Scan Destinations

Scan to PC、Mail、FTP、SMB、U-disk

Scan format

Push scan：PDF，TIFF，JPG，OFD

Pull scan：PDF、TIFF、JPG、BMP、PNG、OFD、DOCX、XLS、XLSX、PPTX、TXT、Searchable PDF

Pantum scan application software

YES

Other scan function

OCR

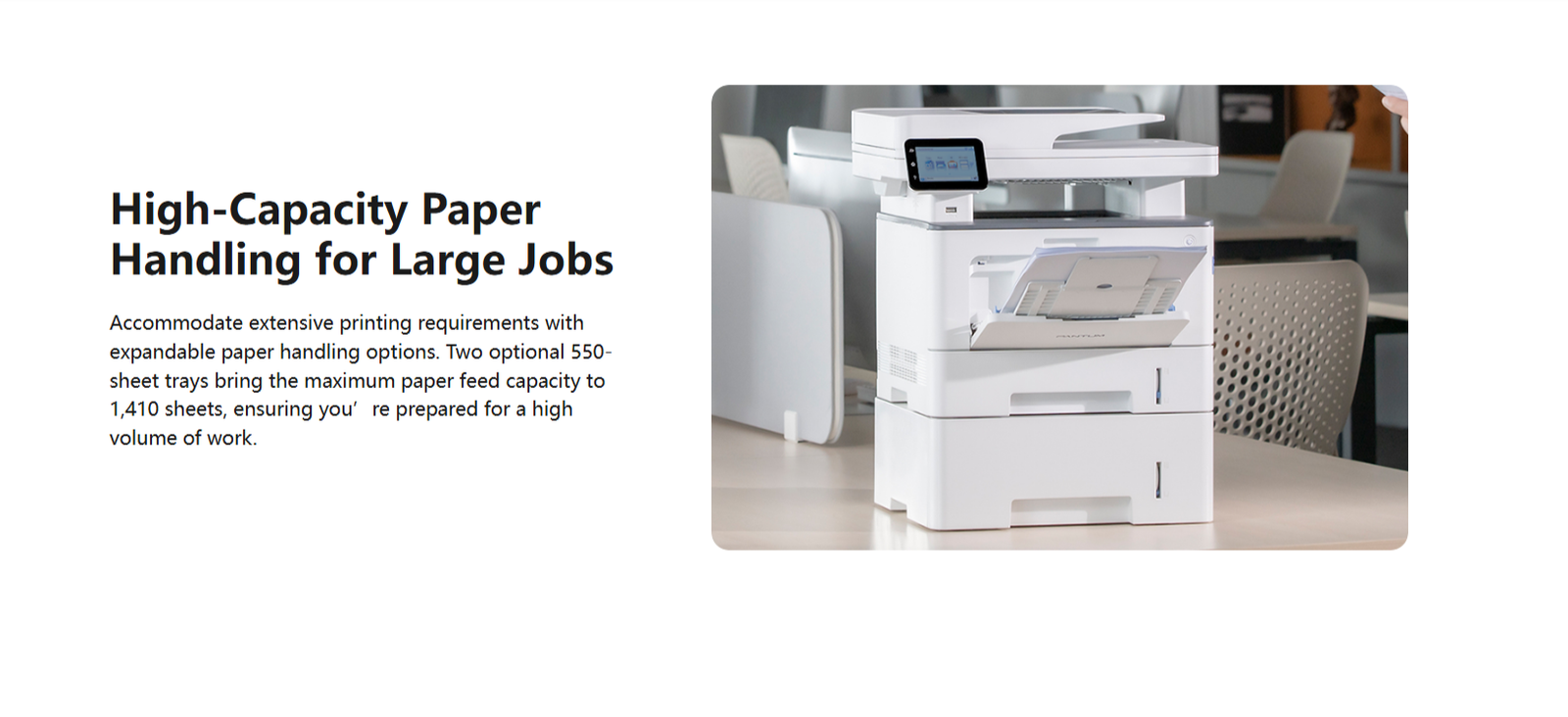

Paper input tray

standard input tray：250 pages;

Multipurpose input tray：60 pages;

Optional tray：550 pages (Maximum:2);

Max input tray：1,410 pages

Paper output tray

150 pages

Paper output full detection

YES

Accessory

PT-511H (Optional tray 550 Pages -Maximum:2)

Media type

1. Automatic paper feeder: plain paper, thick paper, transparent film, thin paper, recycled paper

2. Multi-purpose paper feeder: plain paper, thick paper, card paper, label paper, envelope, thin paper, extra thick paper

3. Optional paper tray: plain paper, thick paper, thin paper

Media size

A4, A5, JIS B5, IS0 B5, A6, Letter,Legal,Executive,Folio,Oficio,Statement, Japanese Postcard, Monarch Env, DL Env, C5 Env, C6 Env, No.10 Env, ZL, Big 16K, Big 32K, 16K, 32K, B6, Yougata4, Postcard, Younaga3, Nagagata3, Yougata2

Min size：80mm x 148mm

Max size：216mm x 356mm

Media weight

input tray：60-120g/㎡

Multipurpose tray：60-200g/㎡

Optional tray：60-120g/㎡

Consumable Type

Toner Cartridge & Drum Unit

Starter Cartridge

TL-*5220 (3,000 pages）

Starter drum unit

DL-*5220 （30,000 pages）

Standard Cartridge

TL-*5220（3,000 pages）

TL-*5220H （6,000 pages）

TL-*5220X （15,000 pages)

Standard drum unit

DL-*5220（30,000 pages）

Printer Dimensions(D*W*H)

416*368*378mm

Package Dimensions(D*W*H)

559*444*488mm

Printer net weight（kg)

12.7kg (With consumable)

Printer gross weight (kg)

15.4kg
