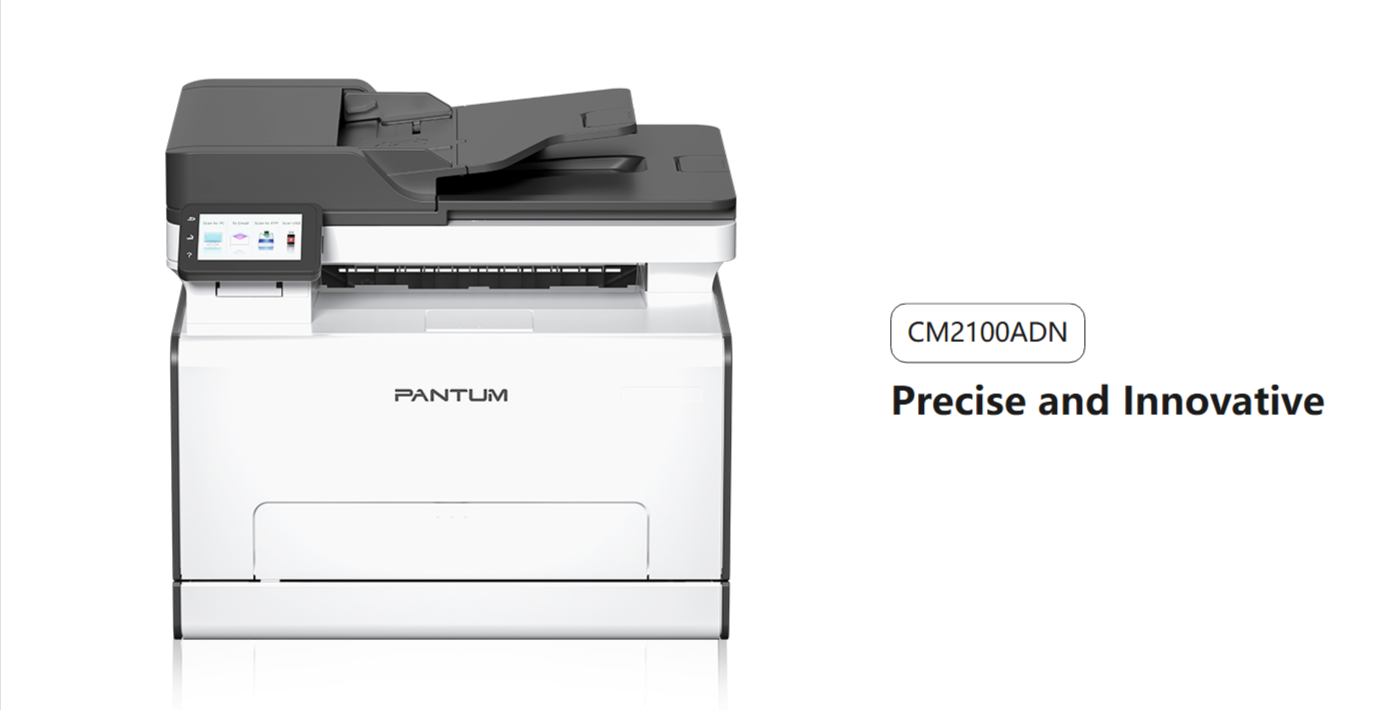

Pantum CM2100ADN Color laser multifunction printer

Product

CM2100ADN

Print speed(A4/LTR)

A4：20ppm、LTR：21ppm

Duplex print speed

A4/LTR：6ppm

First print out time

Mono：10s、Color：12s

Printer language

GDI

Processor speed

500MHz

Memory

DDR3L 512MB

Hard disk

SPI NAND 256MB

Control panel

3.5 inch touch screen

Recommended Monthly Page Volume

150-1500pages

Maximun Monthly duty cycle

30000pages

Auto Duplex Printing

YES

Mobile Printing

Airprint、Mopria™ Print Service、PANTUM App

Other Printing Functions

1、N in 1 printing

2、Poster printing

3、Watermark printing

4、Booklet printing

5、Print Text As Black

6、Mono printing when color powder is over

7、Seal printing

8、Mute printing

Note

Apple, AirPrint Mac and macOS are trademarks of Apple lnc., registered in the U.S and other countries.Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.

Mopria makes it easier to print and scan from your Android and Windows.

For Android, Mopria™ Print Service and Mopria Scan are available for installation in the Google Play™ store.If you want to get more information, please visit https://www.mopria.org

The Mopria™ wordmark and the Mopria™ Logo are registered and/or unregistered trademarks of Mopria Alliance, Inc. in the United States and other countries. Unauthorized use is strictly prohibited.

Copy speed

A4/LTR：20cpm

First copy out time

FB≤17s

ADF≤18s

Copy mode

Text、Image、Text+Image、Auto（default）

Copy Resolution

FB/ADF：Max. 600 x 600dpi

Copy reduce / enlarge settings

25%-400%

Max.copy page

99 pages

Copy function

ID copy

Receipt copy

N-up copy

Clone copy

poster copy

Scan technology

CIS

Scanner type

FB+ADF

Scan mode

color、gray、mono

Resolution

Max. 600 x 600dpi（ADF）

Max. 1200 x 1200dpi（FB）

ADF scan speed

ADF:A4/LTR:20ipm(300 x 300 dpi gray mode)

ADF capacity

50pages（80g/m2)

Scan size

Max. 216 mm x297mm (FB)

Max. 216 mm x356mm（ADF)

Scan to

PC/Email/FTP/U flash drive

Scan format

Windows/MAC：

pull scan：PDF、TIFF、JPG、BMP、PNG、OFD

push scan：PDF、TIFF、JPG、OFD

Linux：

pull scan：PDF、TIFF、JPG、BMP、PNG

Pantum scan application

YES

Paper Input Capacity

Standard：250 pages

Multipurpose：1 page

Maximum：250+1pages

Paper Output Capacity

Standard：100pages

Maximum：100pages

Paper Output Detection

YES

Media type

Thin paper: 60~70g (excluding 70g);

Plain paper 1: 70~90g (excluding 90g);

Plain paper 2: 90g-105g (including 90g, including 105g);

Thick paper: 105~130g (excluding 105g and 130g);

Thick paper 2: 130g-176g (including 130g and 176g);

Thick paper 3: 176g-200g (including 200g);

Envelopes/Cards/Labels/Transparency

Media Size

A4、 Letter、 Legal、 Folio、 Oficio、 JIS B5、 ISO B5、 Executive、 Statement、 A5、big 16K（210mm×285mm）、16K（185mm×260mm）、big 32K（203mm×140mm）、32K（184mm×130mm）、 A6、 No.10 Env、 Monarch Env、 DL Env、 C5 Env、 C6 Env、 Yougata4、 Younaga3、 Nagagata3、 Yougata2、 ZL Env、 Postcard、B6、 Japanese Postcard

Customize：96x148mm~216x356mm

Media Weight

Standard：60g~105g/㎡

Multipurpose：60g~200g/㎡

Duplex printing：70g~105g/㎡

Machine Dimension（D*W*H）

415*403*346mm

Machine Package Dimension（D*W*H）

566*512*442mm

Printer Net Weight

19.45 Kg

Printer Gross Weight

22.5 Kg

Cartridge Dimension（D*W*H）

292*63*64mm

Cartridge Package Dimension（D*W*H）

395*120*123mm

Cartridge Net Weight

0.675 Kg/pc

Cartridge Gross Weight

0.92 Kg/pc

Connectivity

USB2.0

10/100 Base-Tx

Power

110V Model：AC100-127V(±10%),50/60Hz(±3Hz)，8A

220V Model：AC220-240V(±10%),50/60Hz(±3Hz)，4A

Power Consumption

Print Average：≤380W

Standby：＜5W

Dormant：＜2W

Off：＜0.5W

Energy Star

Energy Star 3.0

Noise

Standby：≤30dBA

Print：≤54dBA

Mute：≤50dBA

Print Environment

Operating Temperature：10～32℃

Relative Humidity：20%~80%RH

Altitude ≤3000m

Operating System

Windows：Windows XP（x86）、Windows 7（x86/x64）、Windows 8.1（x86/x64）、Windows 10（x86/x64）、Windows 11（x64）、Server 2008、Server 2008 R2、Server 2012、Server 2012 R2、Server 2016、Server2019

Mac：Mac10.8、10.9～10.15、Mac OS 11、Mac OS 12

Linux：Ubuntu16.04（x86/x64）、Ubuntu18.04（x64）、Ubuntu20.04（x64）、Debian 10.0、Centos 7（32/64 Bit）、Astra Linux Special Edition V1.6、Redhat 8.0.0、Centos 8.2(64 Bit)

Google Chrome：109.0.5414.125-110.0.5481.181

iOS：11.0-16.3

Android：6.0-13.0

Harmony：1.0-3.0

Consumable Type

One-piece

Starter Cartridge

CTL-*2100K：1500pages

CTL-*2100C/CTL-*2100M/CTL-*2100Y：1000pages

CWT-2100：15000pages

Cartridge Model and Yield

CTL-*2100K：1500pages

CTL-*2100HK：3000pages

CTL-*2100C/CTL-*2100M/CTL-*2100Y：1000pages

CTL-*2100HC/CTL-*2100HM/CTL-*2100HY：2500pages

CWT-2100：15000pages

1. The maximum monthly printing load is the number of paper pages that can be output by a certain device in a long-term operation within a month. This metric can be used to compare the durability of other Pantum printers or MFPs.

2. The recommended number of printed pages per month is the range of pages to help customers evaluate product supply based on the average number of pages that customers plan to print on the device each month. Customers are advised that the number of pages printed per month should be within the device’s recommended range for optimum performance. In addition, other factors that should be considered include: consumable replacement intervals, paper loading intervals, print speeds, and typical applications of the customer.

3. The capacity of the toner cartridge is the average printing volume of the toner cartridge in the test one-sided (single-sided) mode when printing continuously, according to the ISO/IEC 19798 (color machine) / ISO/IEC 19752 (black and white machine) standard. Actual yields may vary based on device speed, paper size and orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity, among other factors.

4. The specifications of paper input capacity and paper output capacity are affected by the printing environment, paper brand, paper weight, etc., and the actual specifications may vary.
