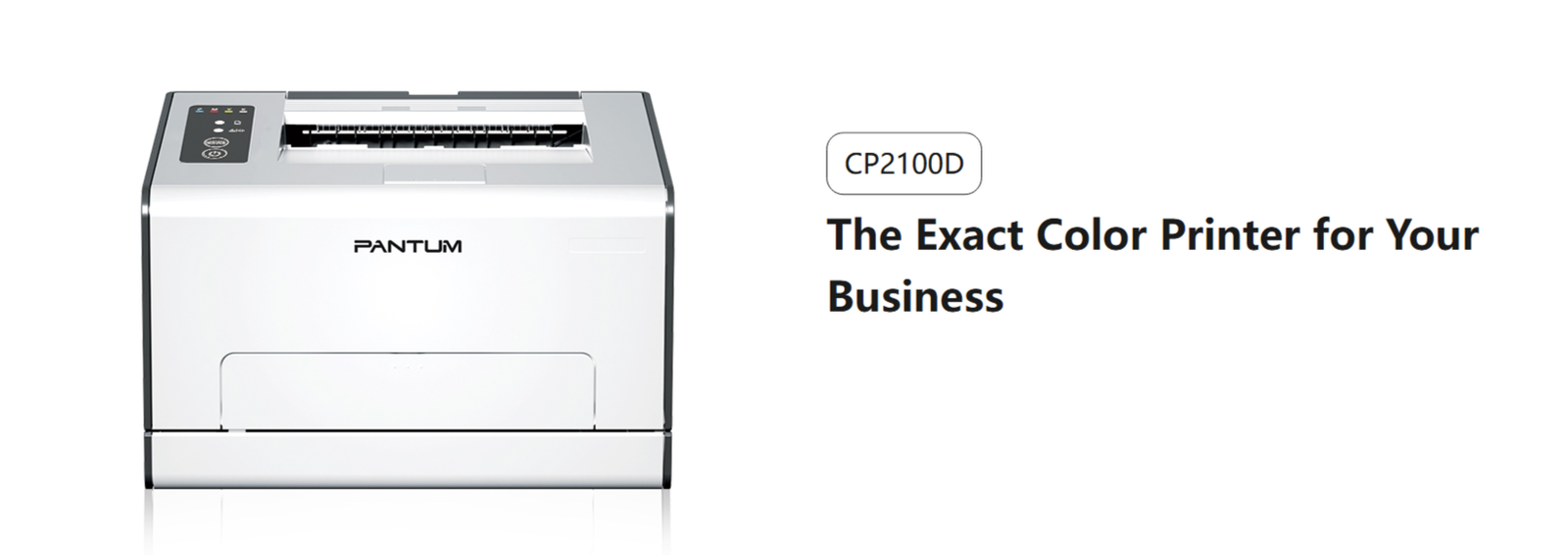

Pantum CP2100D Color laser single function printer

Product

CP2100D

Print speed(A4/LTR)

A4：20ppm、LTR：21ppm

Duplex print speed

A4/LTR：6ppm

First print out time

Mono：10s、Color：12s

Printer language

GDI

Processor speed

500MHz

Memory

DDR3L 512MB

Hard disk

SPI NAND 128MB

Control panel

LED

Recommended Monthly Page Volume

150-1500pages

Maximun Monthly duty cycle

30000pages

Auto Duplex Printing

YES

Mobile Printing

NO

Other Printing Functions

1、N in 1 printing

2、Poster printing

3、Watermark printing

4、Booklet printing

5、Print Text As Black

6、Mono printing when color powder is over

7、Seal printing

8、Mute printing

Paper Input Capacity

Standard：250 pages

Multipurpose：1 page

Maximum：250+1pages

Paper Output Capacity

Standard：100pages

Maximum：100pages

Paper Output Detection

YES

Media type

Thin paper: 60~70g (excluding 70g);

Plain paper 1: 70~90g (excluding 90g);

Plain paper 2: 90g-105g (including 90g, including 105g);

Thick paper: 105~130g (excluding 105g and 130g);

Thick paper 2: 130g-176g (including 130g and 176g);

Thick paper 3: 176g-200g (including 200g);

Envelopes/Cards/Labels/Transparency

Media Size

A4、 Letter、 Legal、 Folio、 Oficio、 JIS B5、 ISO B5、 Executive、 Statement、 A5、big 16K（210mm×285mm）、16K（185mm×260mm）、big 32K（203mm×140mm）、32K（184mm×130mm）、 A6、 No.10 Env、 Monarch Env、 DL Env、 C5 Env、 C6 Env、 Yougata4、 Younaga3、 Nagagata3、 Yougata2、 ZL Env、 Postcard、B6、 Japanese Postcard

Customize：96x148mm~216x356mm

Media Weight

Standard：60g~105g/㎡

Multipurpose：60g~200g/㎡

Duplex printing：70g~105g/㎡

Machine Dimension（D*W*H）

401*400*225

Machine Package Dimension（D*W*H）

566*512*339

Printer Net Weight

15.3 Kg (with printer and starter cartridge)

Printer Gross Weight

16.3 Kg

Printer Gross Weight(with package)

18.1 Kg

Cartridge Dimension（D*W*H）

292*63*64mm

Cartridge Package Dimension（D*W*H）

395*120*123mm

Cartridge Net Weight

0.675 Kg/pc

Cartridge Gross Weight

0.92 Kg/pc

Connectivity

USB2.0

Power

110V Model：AC100-127V(±10%),50/60Hz(±3Hz)，8A

220V Model：AC220-240V(±10%),50/60Hz(±3Hz)，4A

Power Consumption

Print Average：≤380W

Standby：＜5W

Dormant：＜2W

Off：＜0.5W

Energy Star

Energy Star 3.0

Noise

Standby：≤30dBA

Print：≤54dBA

Mute：≤50dBA

Print Environment

Operating Temperature：10～32℃

Relative Humidity：20%~80%RH

Altitude ≤3000m

Operating System

Windows：Windows XP（x86）、Windows 7（x86/x64）、Windows 8.1（x86/x64）、Windows 10（x86/x64）、Windows 11（x64）、Server 2008、Server 2008 R2、Server 2012、Server 2012 R2、Server 2016、Server2019

Mac：Mac10.8、10.9～10.15、Mac OS 11、Mac OS 12

Linux：Ubuntu16.04（x86/x64）、Ubuntu18.04（x64）、Ubuntu20.04（x64）、Debian 10.0、Centos 7（32/64 Bit）、Astra Linux Special Edition V1.6、Redhat 8.0.0、Centos 8.2(64 Bit)

Google Chrome：109.0.5414.125-110.0.5481.181

Consumable Type

One-piece

Starter Cartridge

CTL-*2100K：1500pages

CTL-*2100C/CTL-*2100M/CTL-*2100Y：1000pages

CWT-2100：15000pages

Cartridge Model and Yield

CTL-*2100K：1500pages

CTL-*2100HK：3000pages

CTL-*2100C/CTL-*2100M/CTL-*2100Y：1000pages

CTL-*2100HC/CTL-*2100HM/CTL-*2100HY：2500pages

CWT-2100：15000pages

1. The maximum monthly printing load is the number of paper pages that can be output by a certain device in a long-term operation within a month. This metric can be used to compare the durability of other Pantum printers or MFPs.

2. The recommended number of printed pages per month is the range of pages to help customers evaluate product supply based on the average number of pages that customers plan to print on the device each month. Customers are advised that the number of pages printed per month should be within the device’s recommended range for optimum performance. In addition, other factors that should be considered include: consumable replacement intervals, paper loading intervals, print speeds, and typical applications of the customer.

3. The capacity of the toner cartridge is the average printing volume of the toner cartridge in the test one-sided (single-sided) mode when printing continuously, according to the ISO/IEC 19798 (color machine) / ISO/IEC 19752 (black and white machine) standard. Actual yields may vary based on device speed, paper size and orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity, among other factors.

4. The specifications of paper input capacity and paper output capacity are affected by the printing environment, paper brand, paper weight, etc., and the actual specifications may vary.
