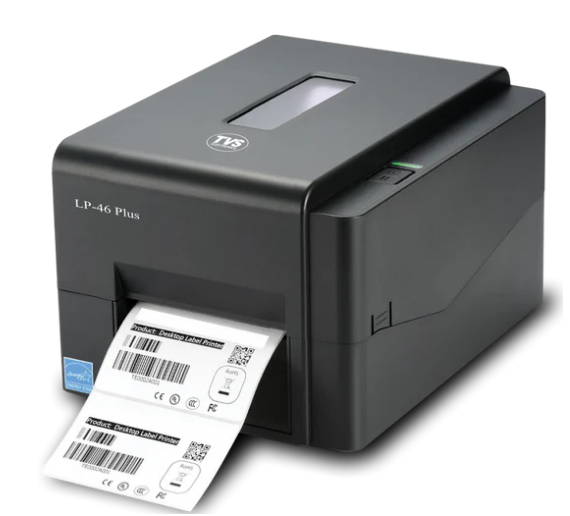

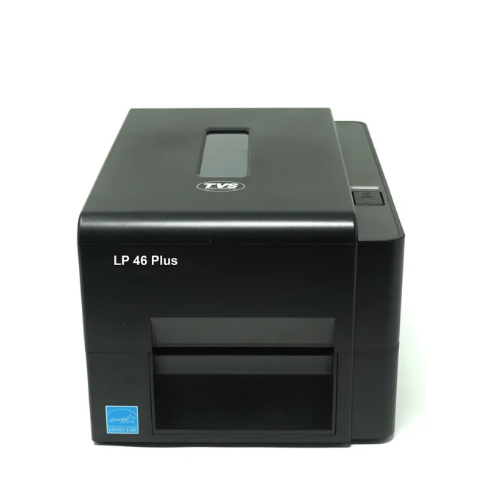

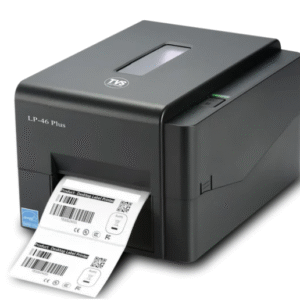

TVS LP 46 Plus Thermal Label Printer ( USB / Serial / Ethernet )

Resolution

8 dots/mm 203 DPI

Printing Method

Thermal Transfer & Direct Thermal

Max. Print width

108 mm 4.25“

Max. Print Speed

152.4 mm 6”/second

Max. Print length

2,794 mm 110“

Physical dimension

204 mm W x 164 mm H x 280 mm D

Weight

2.4 kg 5.29 lbs

Label roll capacity

127 mm 5“ OD

Ribbon

300 m long, max. OD 67 mm, 1” core ink coated outside

Ribbon Width

40 mm ~ 110 mm 1.6” ~ 4.3”

Processor

32bit RISC CPU

Memory

128 MB Flash memory, 64 MB SDRAM

Interface

USB, Serial and Ethernet

Power

Input: AC 100240V, 2.5A, 5060Hz, Output: DC 24V, 2.5A, 60W

Sensors

Transmissive gap sensor, Black mark reflective sensor position adjustable

Barcode

• 1D bar code

Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit,Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 5 digits addon,Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN, TELEPENN,PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS

• 2D bar code

GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417

Printer Language

TSPLEZD Compatible to EPL, ZPL, ZPL II, DPL

Media type

Continuous, diecut, black mark, fanfold, notched outside wound

Media width

20 ~ 112 mm 0.8“ ~ 4.4“

Media thickness

0.06 ~ 0.19 mm 2.36 ~ 7.48 mil

Media core diameter

25.4 ~ 38 mm 1” ~ 1.5”

Label Length

5-25, 400mm

Environment Condition

Operation: 5°C ~ 40°C, 25 ~ 85% noncondensing

Storage: ~40°C ~ 60°C, 10 ~ 90% noncondensing
