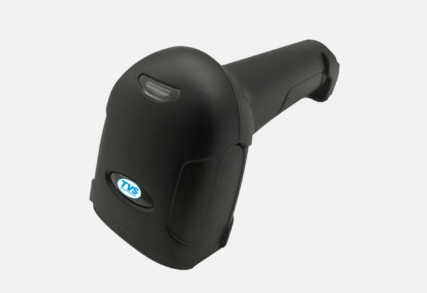

TVS 2D Barcode Scanner BS-I201T
26 people are viewing this product right now
Shipping calculated at checkout.
With a speedy 300 scans per second capability, this scanner ensures seamless barcode capture even in high-volume operations.It supports a wide range of 1D and 2D barcode symbologies, including QR and DataMatrix, making it versatile across industries.Designed to withstand 1.8m drops and rated IP54, it performs reliably in tough working conditions.Compatible with Windows, Android, and iOS platforms, it offers plug-and-play USB connectivity for effortless deployment.
Brand : TVS
Warranty : 1 Year or As Per TVS Service Center
Technical Details
Scan Performance
Model NoBS-I201T
Scan ModeAutomatic / Handheld
Alarm ModeLED light alarm, Buzzer alarm
Read Speed300 scans/sec
Resolution4 mil
Scan Angle45° (Horizontal), 30° (Vertical)
Barcode Density4 mil
Symbol Contrast>= 20%
Maximum Light Intensity105,000 Lux (±5%)
LED / SensorsLED indicators and beep tones
Scan Depth of Field5 mil (Code 39): 30–120 mm;
13 mil (UPC/EAN): 30–305 mm;
20 mil (Code 39): 30–450 mm;
10 mil (QR code): 40–225 mm;
Min 35 mm, Max 165 mm
13 mil (UPC/EAN): 30–305 mm;
20 mil (Code 39): 30–450 mm;
10 mil (QR code): 40–225 mm;
Min 35 mm, Max 165 mm
Revolve AnglePitch 35, Yaw 45
Barcode TypesAustralian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11, Code 39, Code 93, Code 128/EAN128, DataMatrix, Dutch Post, EANUCC Composite, Interleaved 2 of 5, Japan Post, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI Code, PDF417, Planet, Plessey Code, Postnet, QR Code, RSS, Standard 2 of 5, Telepen, TLC 39, UPC/EAN, etc.
OS Platform SupportedWindows, Android, iOS
Roll360°
Electrical
VoltageDC 5V ±5%
Operating Current363 mA (working), 70 mA (standby), 187 mA (operating)
InterfacesUSB
LightVisible red light 630±10 nm
Light LevelResists interference from lamp-light and sunlight
ESD Protection15 kV
Electric SafetyEN55022: 2006+A1:2007, EN55024: 1998+A1:2001+A2:2003
Environmental
Operating Temperature-20°C to 60°C
Storage Temperature-30°C to 90°C
Humidity5%–95% RH
DropDesigned to withstand 1.8 m drops
IP DegreeIP54
Physical
Dimensions (L × W × H)95 mm × 62 mm × 168 mm
Weight136 g
ColorBlack
MaterialABS + PC
