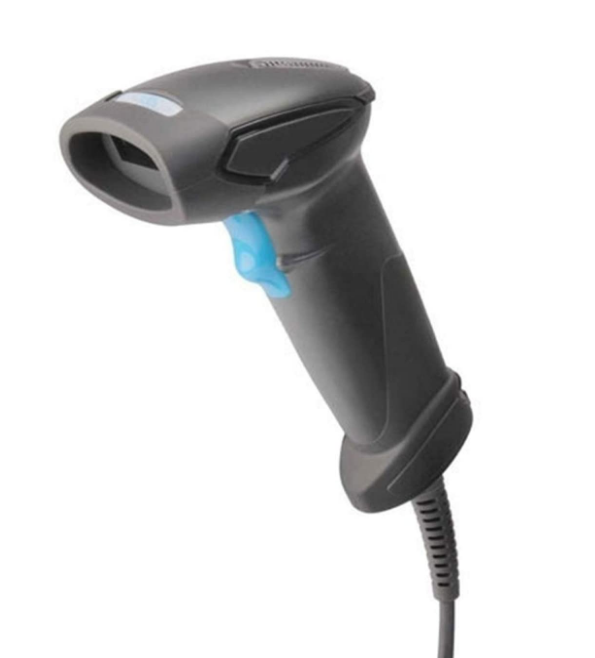

TVS BS-C103 Platina High Speed 1D Linear Scanner
Original price was: ₹7,995.00.₹6,000.00Current price is: ₹6,000.00.
With the ability to do 330 scans per second, the BS-C103 Platina results from the state-of-the-art design, robust functionality and the latest tech in a single device, empowering businesses with speed and progress with every trigger.
330 scans per second
32-bit proprietary Ultrascan decoding technology
GS1 Databar decoding capability
Analog image capture technology
1.5 M drop resistance
Synthetic rubber handle for max. Protection
2500 pixels CCD
Brand : TVS
Warranty : 1 Year or As Per TVS Service Center
Technical Details
Light Source
617 nm visible red LED
Optical System
Linear CCD array
Image Sensor
2500 pixels CCD
Depth of Field
20 – 320 mm (UPC/EAN 100%, PCS=90%)
Scan Angle
42°
Pitch/Roll/Skew Angle
75°/ 25°/ 60°
Scan Rate
330 scans per second
Minimum Bar Width
0.07 mm (3 mil) (Code 39, PCS = 90%)
Print Contrast
Min. 20 % @ UPC/EAN 100%
Indicator (LED)
Beeper and LED
optional vibrator
Programmable Operation
Beeper tone & volume
System Interfaces
Keyboard
RS-232
HID USB
USB Virtual
COM
wand
OPOS
JPOS
Dimension
147.0*62.0*114.5 mm (device only)
Weight
120 g (device only)
Interface Cable
Field replaceable
standard 2M straight
Input Voltage
5 VDC ±5%
Power Consumption
0.6 watts
Operating Current
110 mA typical
EMC
CE & FCC DOC compliance
VCCI
BSMI
Safety
IEC 62471 Exempt
Operating Temperature
0°C – 50°C (32°F – 122°F)
Storage Temperature
-20°C – 60°C (-4°F – 140°F)
Humidity
5% – 95% RH (non-condensing)
Light Level
0-100,000 Lux(fluorescence)
Drop Durability
1.5 m drop resistance
Environmental Sealing
IP 41
1D Barcode
UPC/ EAN/ JAN
UPC-A & UPC-E
EAN-8 & EAN-13
JAN-8 & JAN-13
ISBN /ISSN
Code 39
Codabar
Code 128 & EAN 128
Code 93
ITF
Addendum 2 of 5
IATA Code
MSI/Plessy
China Postal Code
Code 32
Industrial 2 of 5
Standard 2 of 5
DTF
JAP
Code 11
RSS 14
RSS Limited
RSS Expanded
Warranty
1 Year
