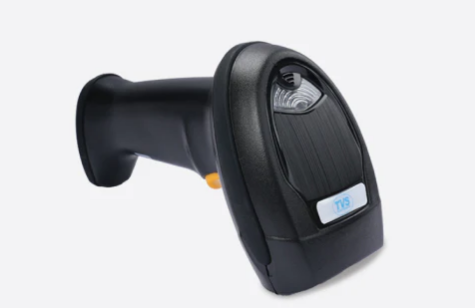

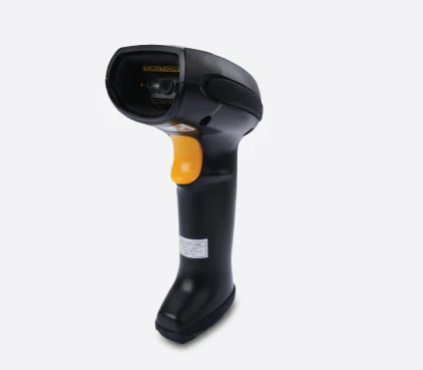

TVS BS-i201 S BT Handheld 2D Scanner

Light source

617 nm LED Aimer
White LED

Supported symbologies

1D : EAN8, EAN13, UPCA, UPCE, CODE 39, CODE 93,CODE 128, EAN 128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI Plessey, GS1 Databar, Industrial 25, Standard 25 etc
2D : QR code, Data Matrix, PDF 417, Aztec, Maxi code

Scan Type

Image CMOS

Scan Speed

200 scans/sec

Scan angle

Yaw 55°
Rotation 30°
Pitch 55°

Precision

5mil

Contrast

20%

Error rate

Less than 1/5 million

Interface

USB HID

Dimensions

102*71*177 mm

Wireless Transmission Distance

~ 25 mts

Storage mode

Offline Storage mode:
When scanner exits the connection range the data is automatically stored
Storage capacity is 512000 Characters

Inventory Storage mode

The scanner can enter the inventory storage mode
Storage capacity is 512000 Characters

Pairing mode

One to one:
One One scanning gun pairs one receiver
One scanner paired with Bluetooth mobile device

Receiving end

Dedicated BT U disc receiver connecting android iOS mobile devices

Light level

can resistive the interference of lamplight and sun shiningty

Weight

223 g

Operating Temperature

20°C~50°C

Storage temperature

40°C~70°C

Relative Humidity

5%~95%

Battery working time

7 hrs

Battery

Lithium battery
2200 mA

Drop / Shock resistance

Withstands a 1.5m drop from concrete

Voltage

DC 5V ± 1%

Operating Current

When scanning code =26 mA
Not scanning: = 280 mA

Standby current

0 mA
