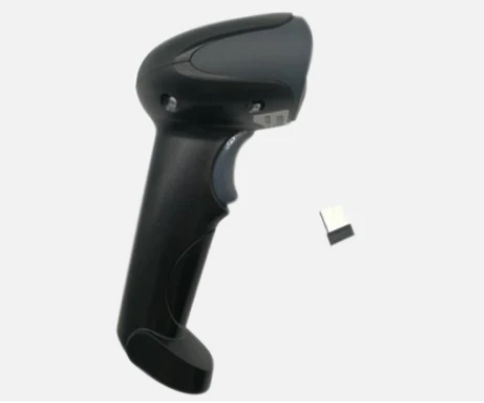

TVS BS-i203G Handheld 2D Wired Barcode Scanner
Original price was: ₹10,495.00.₹9,500.00Current price is: ₹9,500.00.
Built for purpose, the BS-i203G delivers rapid scanning with superior reading and image capture, extracting critical data swiftly; making it ideal for high security and data sensitive industries.
Enhanced High Resolution sensor for rapid and precise scanning
High decoding ability to read damaged, low contrast codes, bar codes from mobile screens
Reads secure high-density QR codes
Superior barcode reading and image capture
Designed to withstand 1.8 m drop
IP 54 protection
Brand : TVS
Warranty : 1 Year or As Per TVS Service Center
Technical Details
Scan mode
Handheld 2D Barcode Scanner
Alarm node
LED light alarm, Buzzer alarm
Scan rate
60 frames/sec
300 scans/sec
Resolution
1280 pixels (H) x 1024 pixels (W)
Field of View
39°(H)x28°(W)
Scan angl
360°(Roll)
±65°(Skew)
±65°(Pitch)
Symbol contrast
>20% minimum reflective difference
Barcode density
4mil
Light Source
(Aimer) Red color LED
(Illumination) White color LED
Decode Ranges
Code39(5mil): 6-26 cm
Code39(13mil): 6-45 cm
QR(15mil): 7-25 cm
QR(20mil): 7-40 cm
QR(30 mil):7-60 cm
Barcode type
1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, ChinaPost (Hong Kong 2 of 5), Korea Post.
2D: Codeblock A, Codeblock F, PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN.
Default open
Codabar
Code39
Interleaved2of5
NEC2of5
Code93
Code128
GS1-128
UPC-A
UPC-E0
EAN/JAN-13
EAN/JAN-8
GS1-DataBar
PDF417
QR
DM
Aztec
Voltage
DC+5V±5%
Operating Power
266mA(working)
130mA(standby)
210mA(Starting)
Interfaces
USB, RS 232
USBCOM Electric Safety: En55022; 2006+A1: 2007 En55024: 1998+A1: 2001+A2: 2003
Shock Specifications
2000G
0.7ms
half sinus
3 axes
Operating temperature
-20°C to 60°C
Storage Temperature
-30°C to 70°C
Humidity
5% to 95% relative humidity
non-condensing
ESD
+/-8 kV contact discharge
+/-15kV air discharge
Drop resistance
Designed to withstand 1.8m drops
Dimensions (L*W*H)
159.99*69.38*107.61 mm
Weight
129.5 g
Material
ABS+PC
Color
Black
IP Rate
IP54
Ambient Light Immunity
0-100000 Lux
USB cable
1.8m
