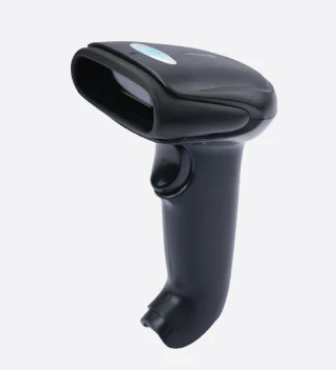

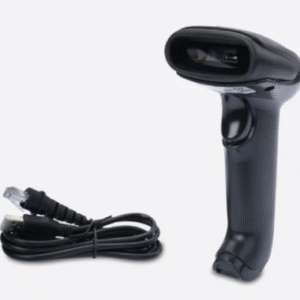

TVS BS-C103 G 1D CCD Imager Scanner
Original price was: ₹9,999.00.₹6,500.00Current price is: ₹6,500.00.
This lightweight scanner delivers superior performance and outstanding durability. It is an ideal solution for supermarkets, shopping malls, warehouses, and other environments.
General purpose omni directional scanner
Reads both 1D and 2D barcodes
High sensitive image sensor with scan speed of 2500 scans /sec
ability to scan damaged and low contrast barcodes
1.2m drop resistence
IR trigger
Quick to switch Mode
IP50 Rating – Sealing
Superior Motion tolerance
Ready to read on screen QR code
Brand : TVS
Warranty : 1 Year or As Per TVS Service Center
Technical Details
rocessor type
ARM32-bit
Operating Freq
24.5 MHz (Internal)
Sensor
Linear CCD Sensor
Scan mode
Manual/Auto sense
Alarm mode
Red light alarm
Buzzer alarm
Scan rate
Smart detect up to 350 scans/second
Print contrast ratio
20%
Light level
Visible red light 632 nm LED
Resolution
3mil/0.1 mm@PCS90%
Scan depth of field
6mil (0.127mm) 40~190mm
8mil (0.2mm) 35~210mm
10mil (0.26mm) 30~300mm
13mil (0.33mm) 30~350mm
20mil (0.5mm) 30~400mm
Barcode type
Australian Post
Aztec
BPO
Canada Post
Codabar
Codablock
Code 11
Code 39
Code 93
code 128/EAN 128
Dutch Post
EAN
UCC Composite
Interleaved 2 of 5
Japan Post
UPC/EAN
Voltage
DC+5V±5%
Operating current
170mA (working)
50mA (standby)
150mA (operating)
ESD
5,000 Lux max
Interfaces
USB
RS 232
USBCOM
Light source
40,000 hours
MTBF (Calculated)
80,000 hours
Operating temperature
-10°C to 50°C
Storage Temperature
-20°C to 60°C
Humidity
20% to 95% (Non-condensing)
Drop Durability
Designed to withstand 1.8m drops
Dimensions (LxWxH)
95mm *62mm * 168mm
Gross weight
175g
Material
PC
Color
Black
