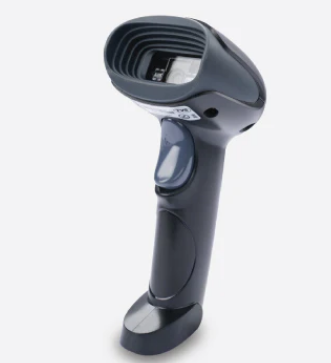

TVS BS-i203G+ BT 2D wireless scanner

Scan mode

Automatic / Manual

Alarm mode

LED light alarm, Buzzer alarm

Light Source

(Aimer) Red color LED
(Illumination) White color LED

Image (Pixels)

1280(H) *800 pixels (V)
1 Million Pixels

Scan angle

28°(Horizontal)
20°(Vertical)

Roll / Pitch / Yaw

360°(Roll), ±65°(Skew) , ±65°(Pitch)

Scan depth of field

5 mil (Code 39) 30~120mm | 13 mil (UPC/EAN) 30~305mm | 20 mil (Code 39 ) 30~450mm | 10 mil (QR code) 40~225mm | Minimum-35mm, Maximum-165 mm

Barcode type

1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA，Matrix 2 of 5，Code 11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omni directional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2of 5). Korea Post.
2D: PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, DataMatrix, etc.

Voltage

+4.2V±10% VDC

Battery capacity

2500mAh

Current Starting

Current:204mA
Stand-by Current:96mA
Work Current:226mA

Interfaces

2.4G
Bluetooth

Print Contrast

20% minimum reflective difference

Ambient Light Immunity

0-100,000 Lux

Operating temperature

-20°C ~ 60°C

Storage temperature

-30°C ~ 70°C

Humidity

5% to 95% relative humidity
non-condensing

Drop

Drop Designed to withstand 1.5 meters (5’) drops

Dimensions (L*W*H)

159.99*69.38*107.61 mm

Weight

188.5 g

Color

black

Material

ABS + EVA
